Capacitor Refence Chart (Digital Download PDF)

Capacitor Reference Chart to identify correct capacitors for Citizen and Miyota, Seiko, and a few other manufacturer calibres.  This is a densely packed PDF with hundreds of calibers listed and is required to properly identify and order the correct capacitor for your watch.

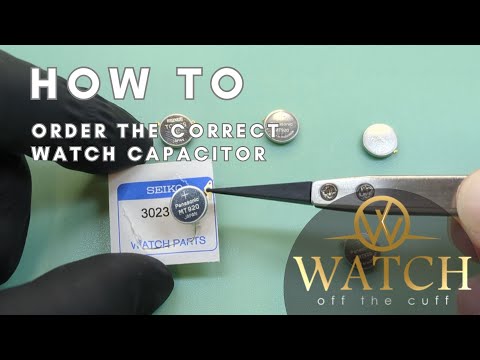

A common manufacturer of capacitor cell is Panasonic, with a model number of MT920 for example - this is not what needs to be ordered as the watch manufactures attach prongs or brackets to this base cell to make contact with the movement.  Therefore you must know the calibre manufacturers specific part number/configuration to get the correct capacitor.

Includes obsolete capacitors and their current equivalents (when available)

MEMBERS of the WOTC YouTube Channel have access to this download for FREE.

Become a member of the WOTC Channel here!

Digital Download - PDF Format (2 pages)
